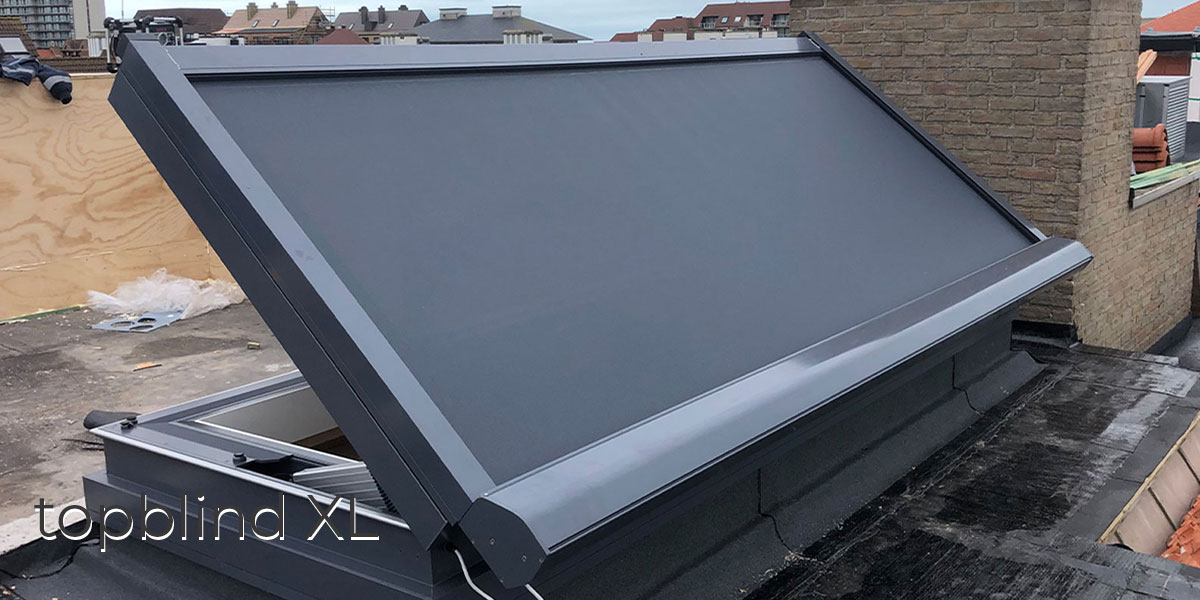

The TopBlind XL

Because the sun can raise the temperatures under a skylight or hatch in the summer, the TopBlind XL keeps the sun and heat out, keeping it pleasantly cool in the house.

TopShade TopBlind XL Driebergen FG Foto 07 04 16 15 37 28

The TopBlind XL is the large robust model in our range. This model is even suitable for skylights up to a width of 5000 mm!

The screens protect you against sunlight in an inconspicuous manner. The sunlight is filtered through the special fabric and still gives you the opportunity to look outside through your skylight or hatch during the day. This preserves the spatial effect of the Skylight!

The fabric on our screens are from Soltis, type Soltis Perform 92. However, the large TopBlind XL screens cannot be fitted with completely black-out fabric. Due to the large area, this is unfortunately not possible. A black-out screen is a very heavy screen which will sag too much for these screens.TopShade TopBlind XL 003

Soltis Perform 92 works like a real thermal shield. It retains up to 97% of the heat when placed outside. This microperforated fabric, available in 48 colors, is the fabric that offers the best thermal performance. For all colors you can download the Brochure.

For the maintenance of the fabric you can download the Brochure here.

request information directly here

92-50690

Snow white

92-50690

92-2044

White

92-2044

92-2175

Champagne

92-2175

92-50265

Hemp

92-50265



92-2135

Sandy beige

92-2135



92-2012

Pepper

92-2012



Brick

92-51180



92-2043

Bronze

92-2043



Taupe

92-50850



92-50303

Quartz

92-50303



92-50843

Shea

92-50843



92-50266

Havana-Brown

92-50266



92-50272

Cloud

92-50272



92-2171

Boulder

92-2171



92-2167

Concrete

92-2167



Dark grey

92-51177



Celestial grey

92-51178



92-2047

Anthracite

92-2047



92-2158

Moss green

92-2158



Green-grey

92-51179



Tennis Green

92-8056



Deep red

92-51181



92-2166

Buttercup

92-2166



92-2160

Lagoon

92-2160



92-8204

Orange

92-8204



92-2157

Aniseed

92-2157



Deep blue

92-51182



92-8255

Red

92-8255

92-50273

Gold

92-50273

92-50274

Copper

92-50274

92-2045

Beaten metal

92-2045

92-2149

Beetle

92-2149

Deep black

92-51176

92-2051

Alu/White

92-2051

92-2046

Alu/Oat

92-2046

92-2048

Alu/Alu

92-2048



92-2074

Alu/Medium grey

92-2074



92-2068

Alu/Anthracite

92-2068



B92-1044

White

B92-1044

B92-2171

Boulder

B92-2171

B92-2135

Sandy beige

B92-2135

B92-1046

Alu

B92-1046

B92-1045

Beaten metal

B92-1045

B92-1043

Bronze

B92-1043

Deep black

B92-51176















value

standards

weight

420 g/m2

EN ISO 2286-2

thickness

0.45 mm

-

wi dth

177 cm - 267 cm

-

standard format length

50 lm in 177 cm width / 40 lm in 267 cm width

-

tensile strength (warp/weft)

310/210 daN/ 5 cm

EN ISO 1421

tear strength (warp/weft)

45/20 daN

DIN 53.363

flame retardancy

B-s2,d0/EN 13501-1

M1/NFP 92-507 • B1/DIN 4102-1• BS 7837 • BS 5867 • Schwerbrennbar Q1-Tr1/

ONORM A 3800-1 • Classe 1/UNI 9177-87 • M1/UNE 23.727-90 • VKF 5.3/SN 198898 •1530.3/AS/NZS • G1/GOST 30244-94 • Method 1/NFPA 701 • CSFM T19 • Class A/ASTM E84 • Group 1/AS/NZS 3837 • Class 1/EN 13773 • CAN/ULC-S109

-

warranty

2 years

-
